South
Flat roof

South

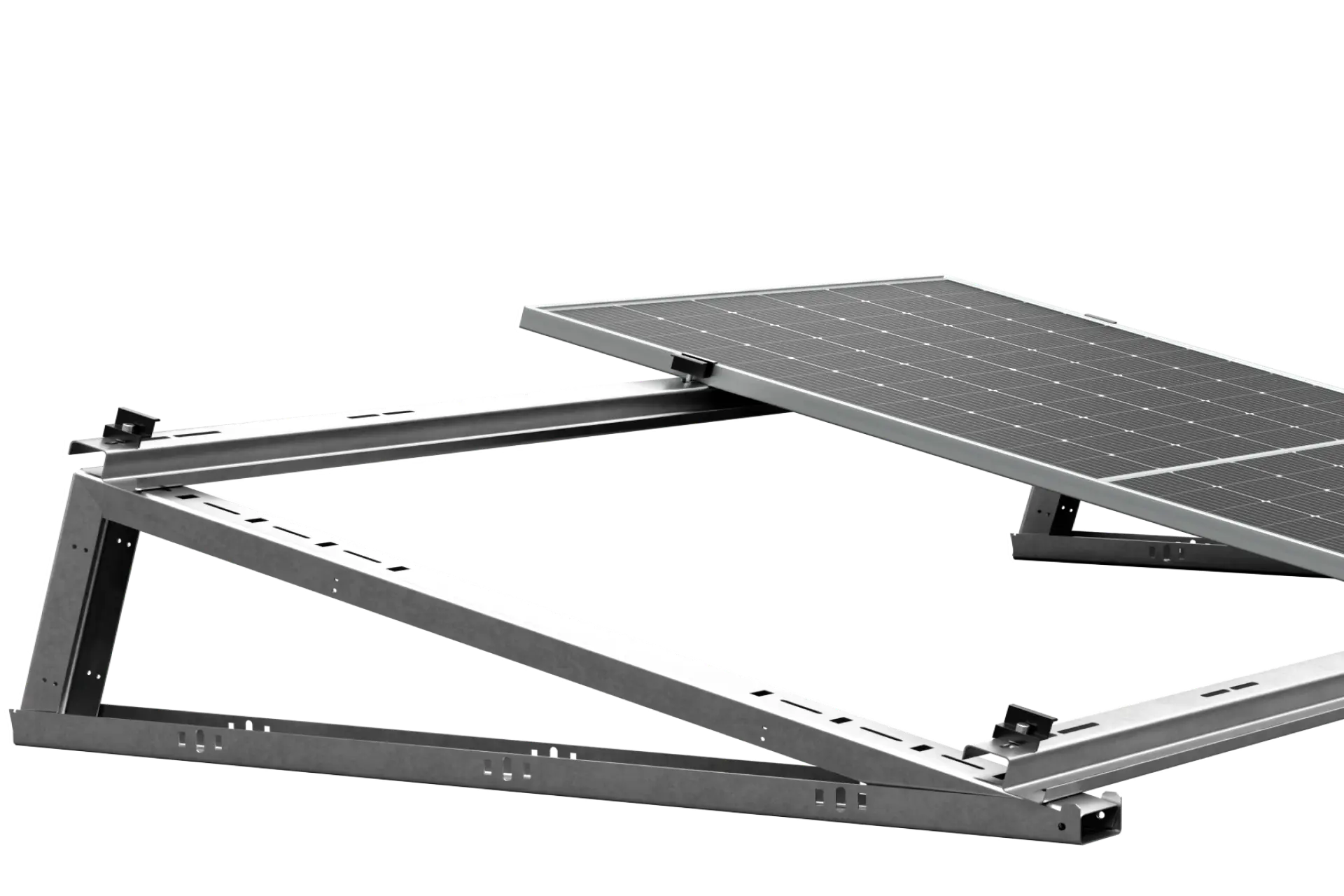

South-oriented roof mounting systems are single-row structures. They can have horizontal or vertical alignment of PV modules. They come in options with a fixed tilt angle or a fixed angle if a one-piece SBS support is used. Three types of attachment to the roof are used: welding with a welded foot, bolting with double-threaded screws, or ballasting with concrete blocks.

VL Standard roof structure
VL Standard roof structure

pionowa, mocowanie – długi bok paneli

HL Standard roof structure
HL Standard roof structure

Horizontal, fixing – long side of panels

HS Standard roof structure
HS Standard roof structure

Horizontal, fixing – short side of panels

VL SBS roof structure
VL SBS roof structure

vertical, fixing – long side of panels, one-piece support

HL SBS roof structure
HL SBS roof structure

Horizontal, fixing – long side of panels, one-piece support

HS SBS roof structure
HS SBS roof structure

Horizontal, fixing – short side of panels, one-piece support
