South
Ground free-standing

South

Free-standing mounting systems for south-oriented photovoltaic panels can have horizontal or vertical PV module arrangements, with configurations ranging from one to four rows. These designs are available in bifacial and monofacial versions. The most common method of foundation is piling, but these systems can also be ballasted on the ground, in the ground or attached to concrete. The choice of installation method depends on local conditions, which affects the stability and efficiency of the installation.

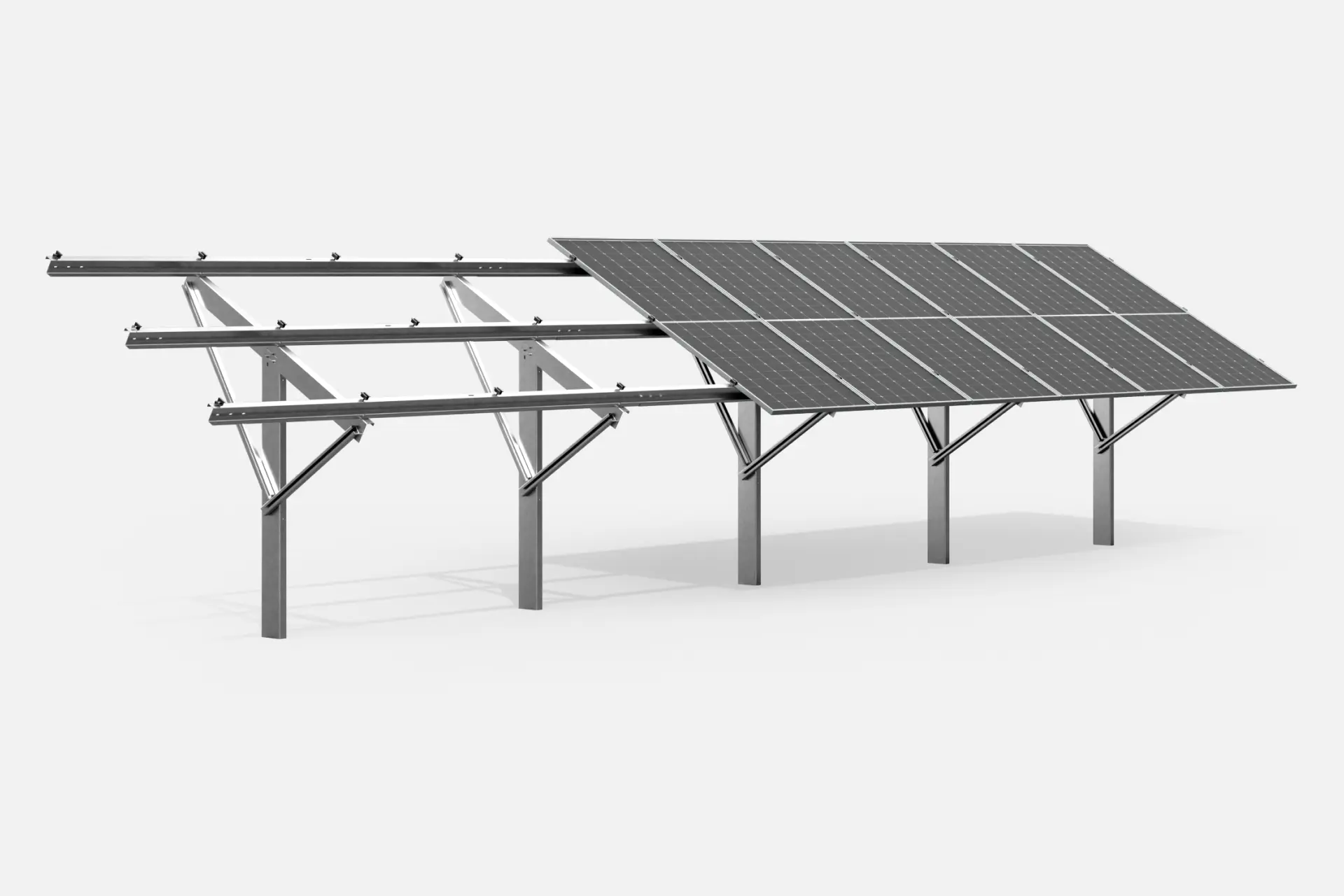

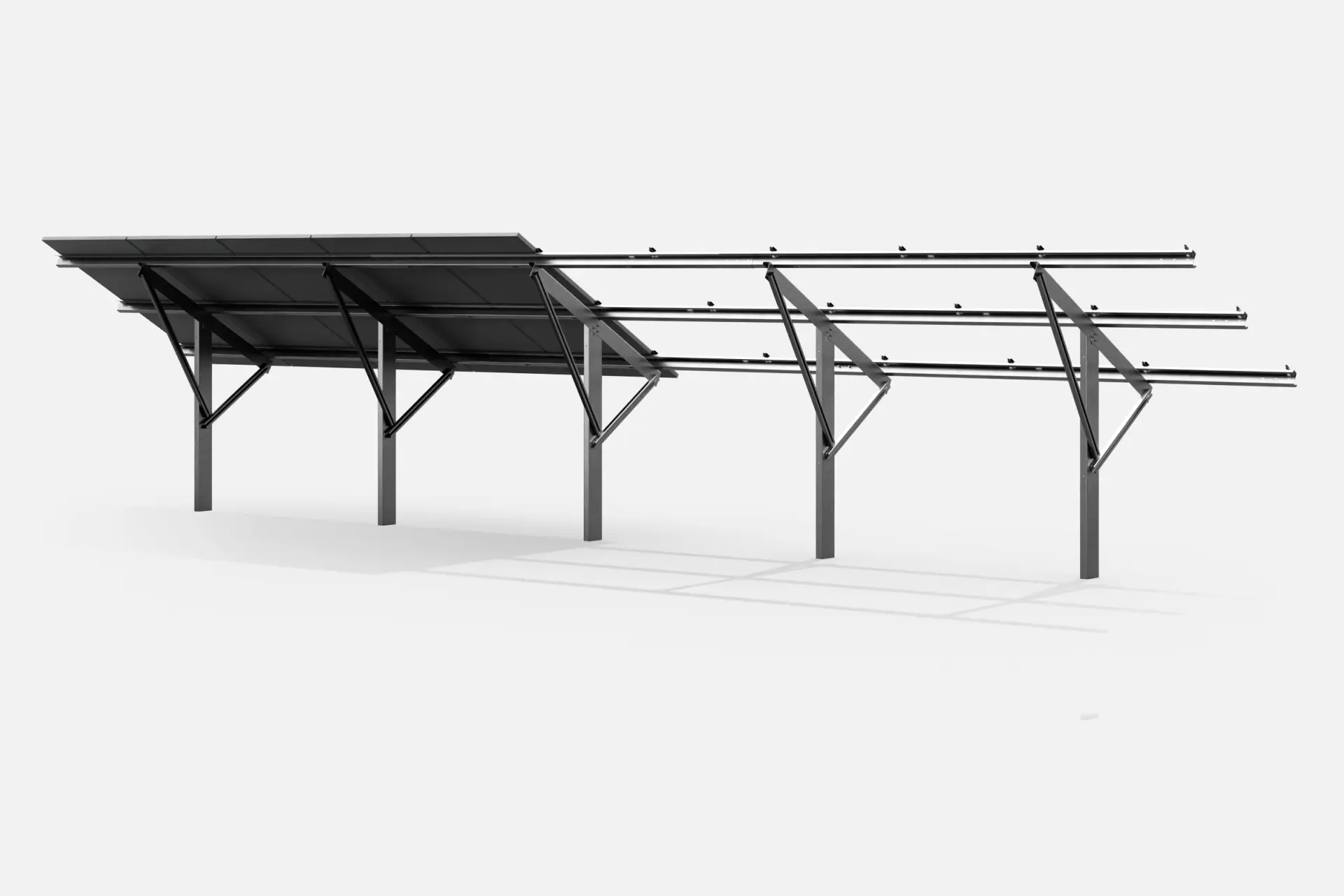

V1xN free-standing structure
V1xN free-standing structure

vertical arrangement, single row, monofacial, single support

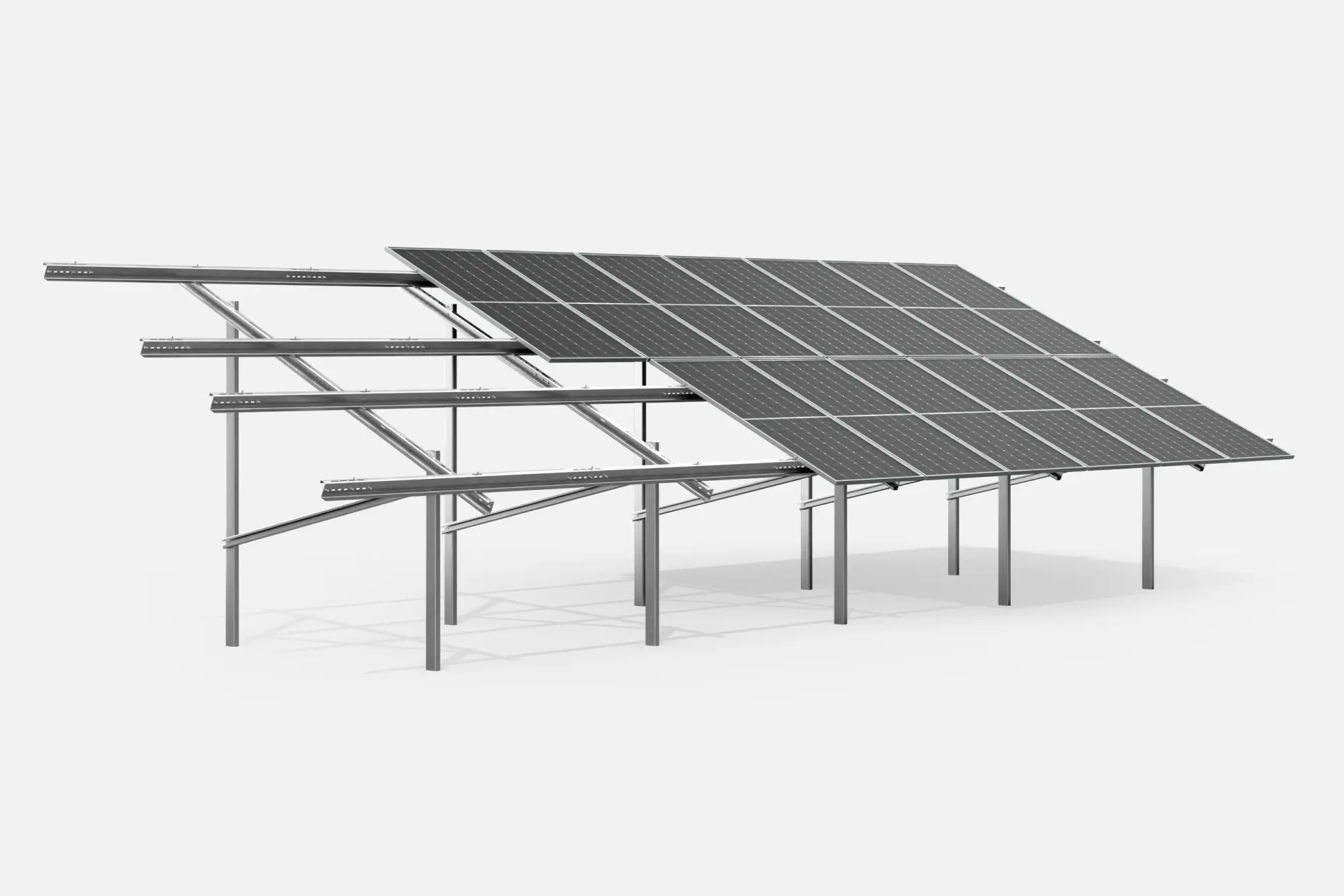

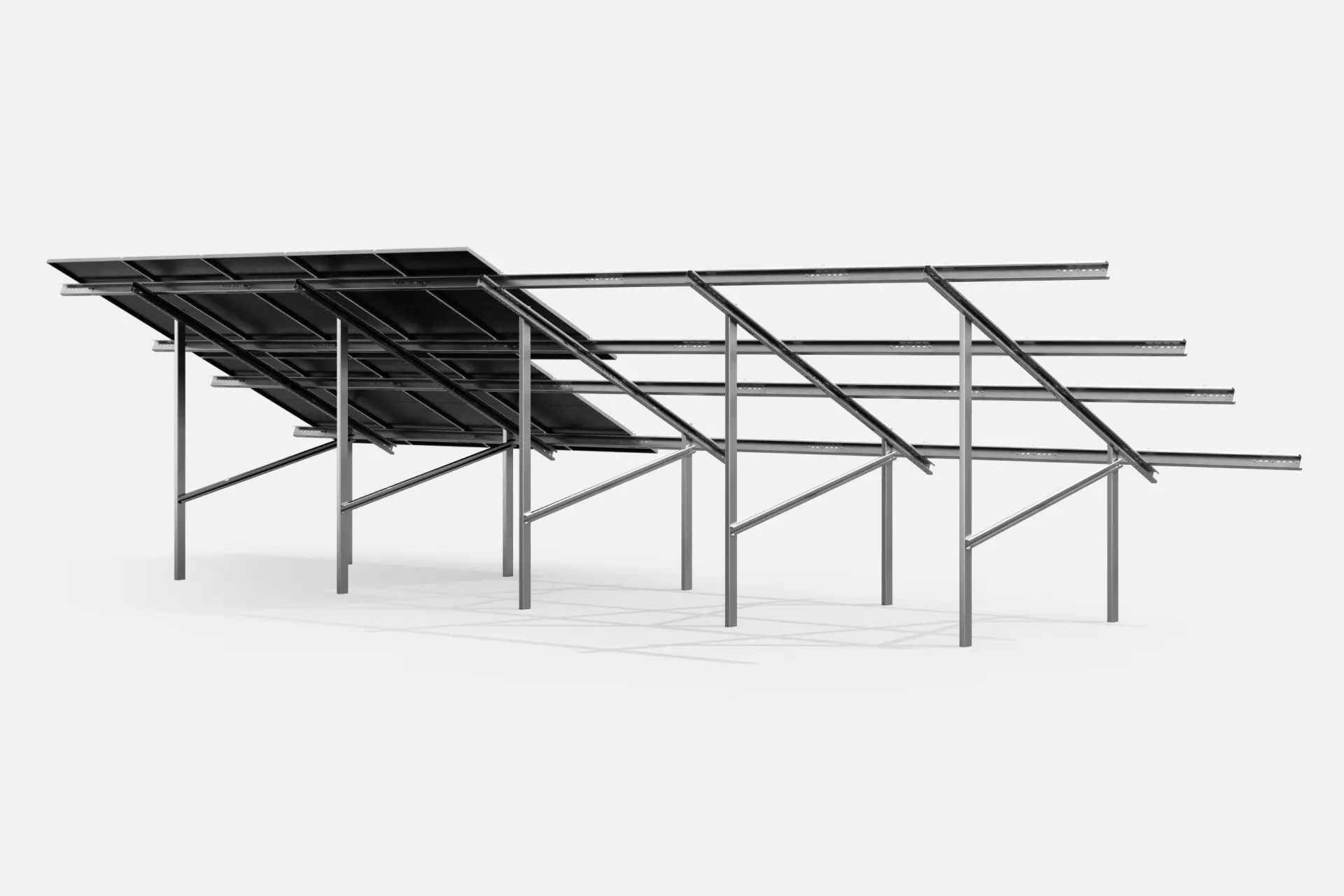

V2xN Standard freestanding structure
V2xN Standard freestanding structure

vertical arrangement, two-row, monofacial, two-supported

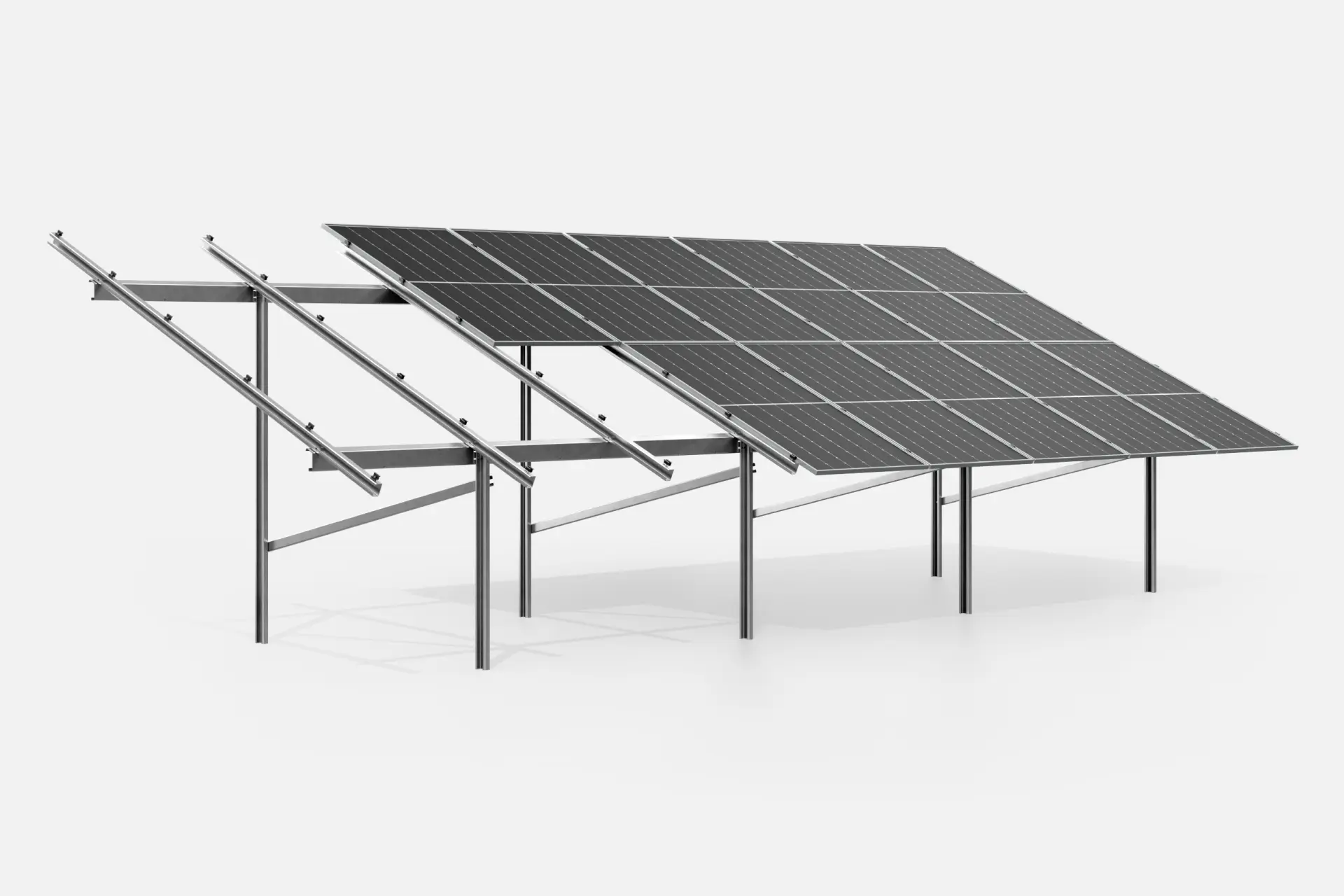

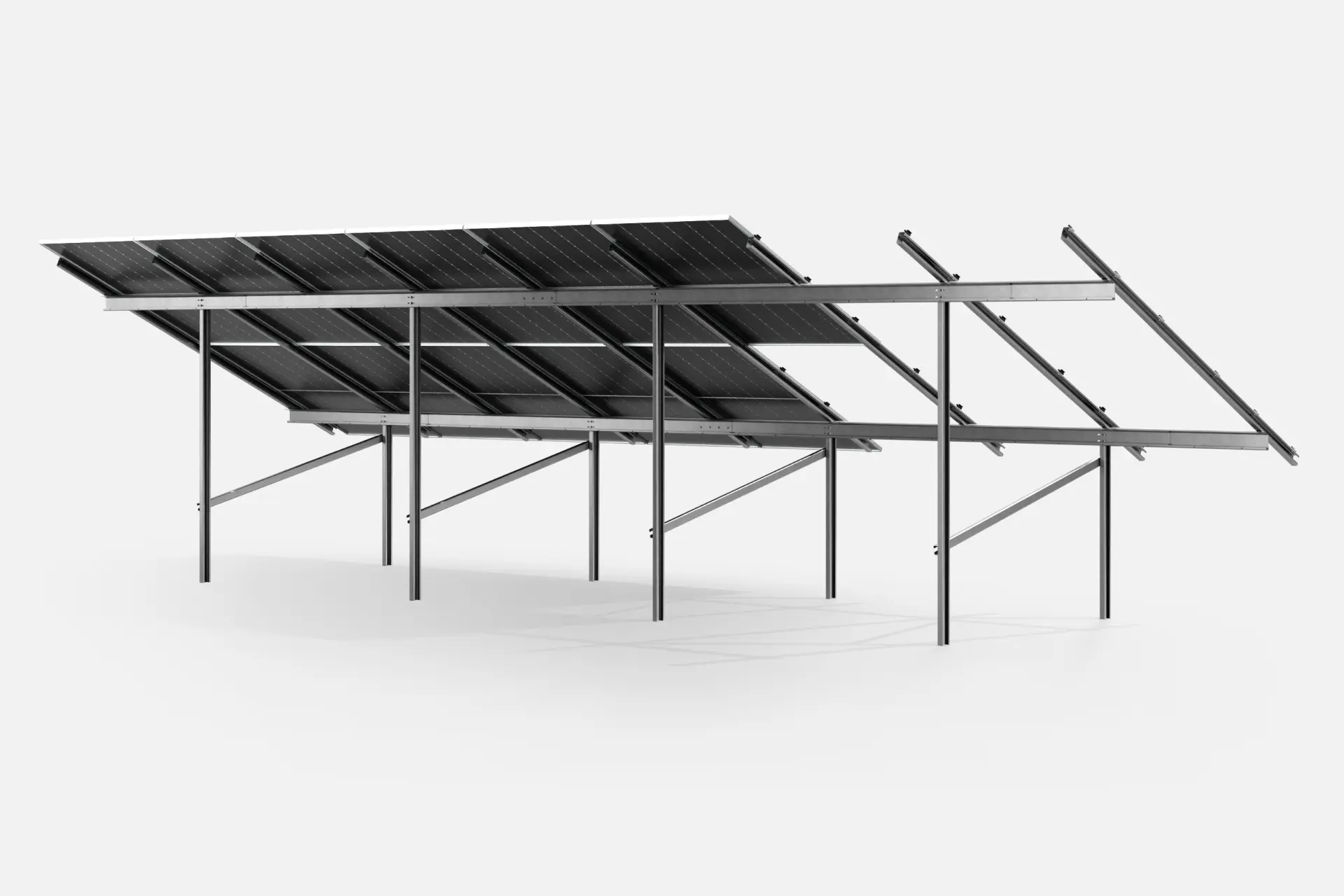

V2xN Bifacial freestanding structure
V2xN Bifacial freestanding structure

vertical arrangement, bifacial, bipodal

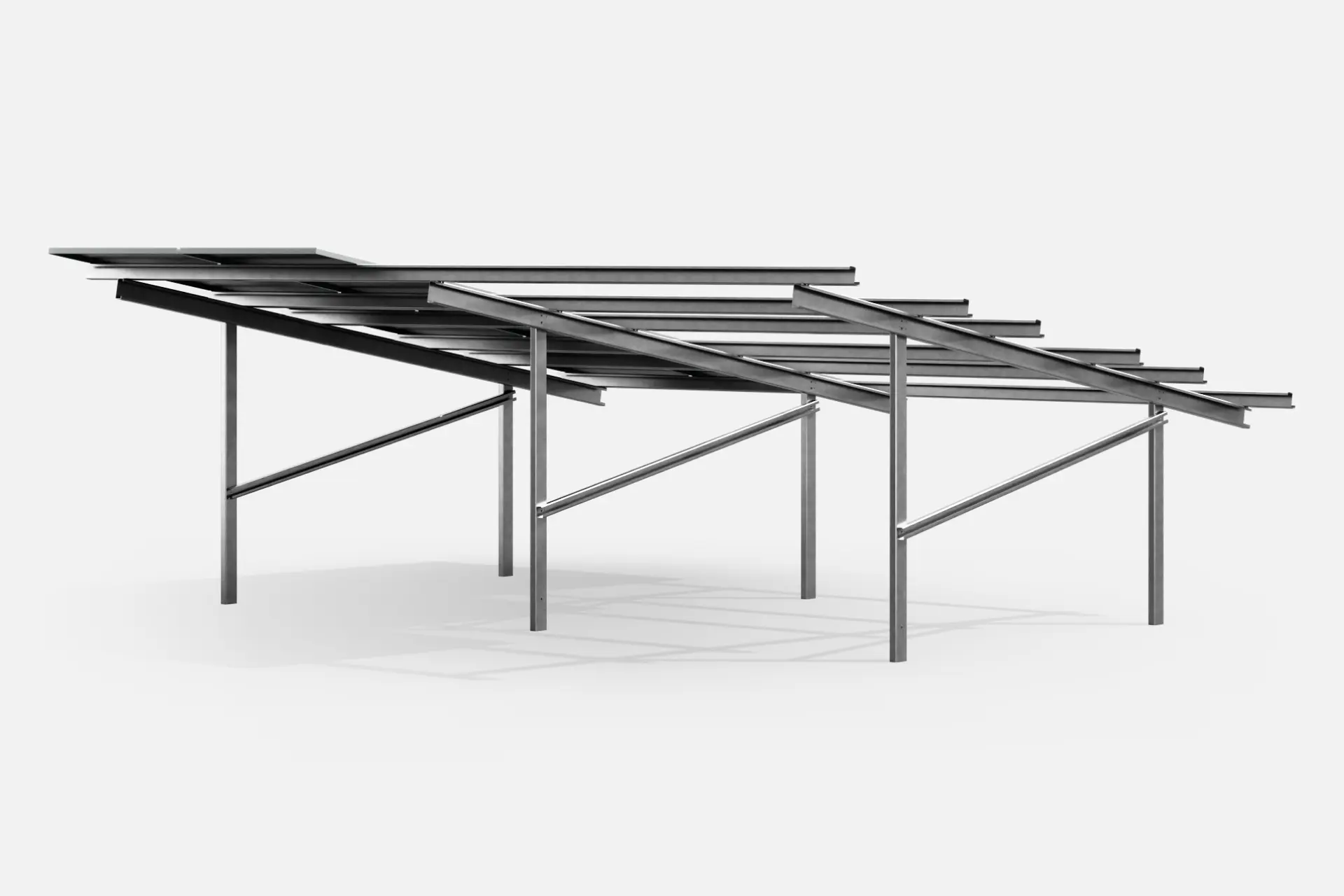

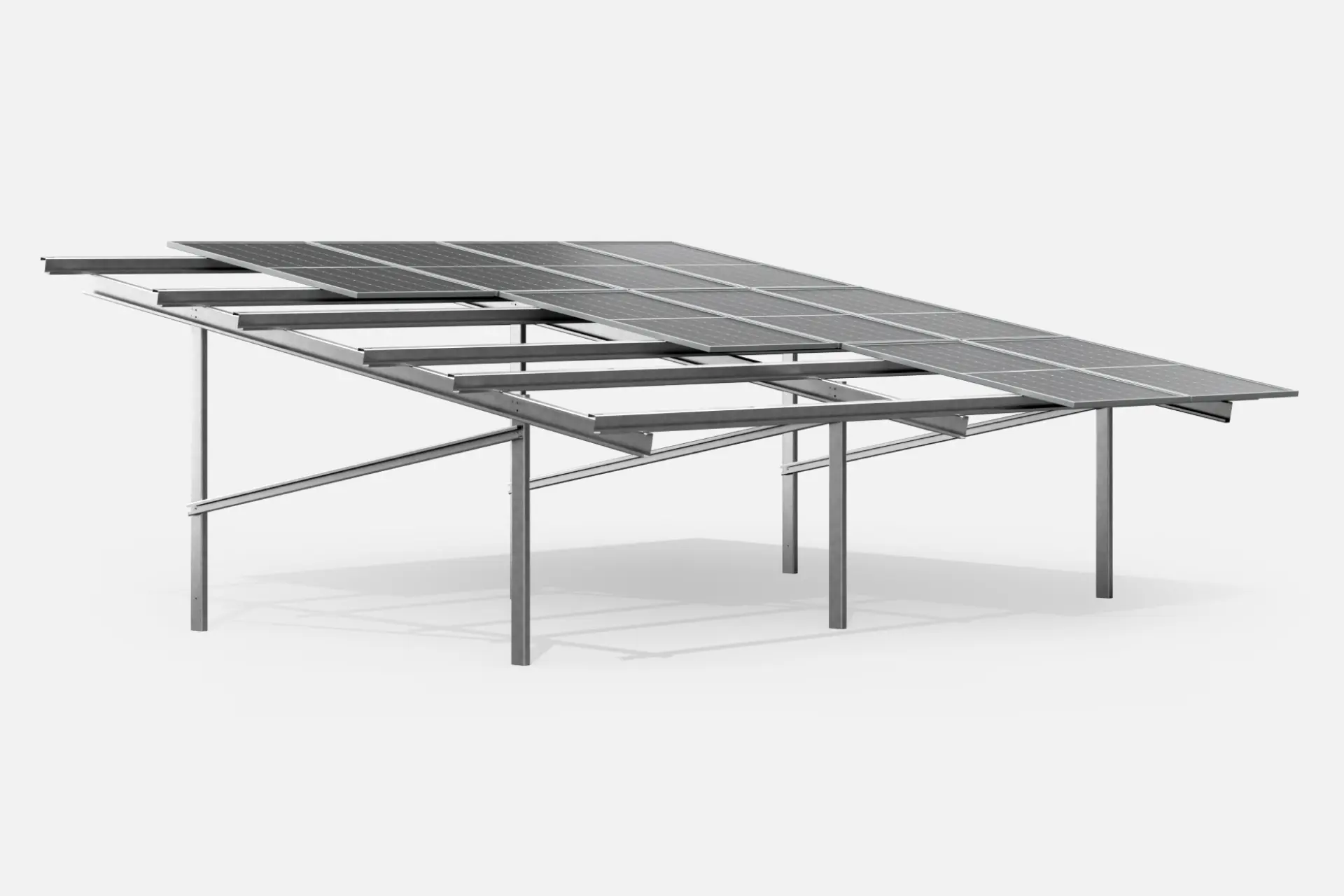

V3xN Standard free-standing structure
V3xN Standard free-standing structure

vertical arrangement, three-row, monofacial, two-legged

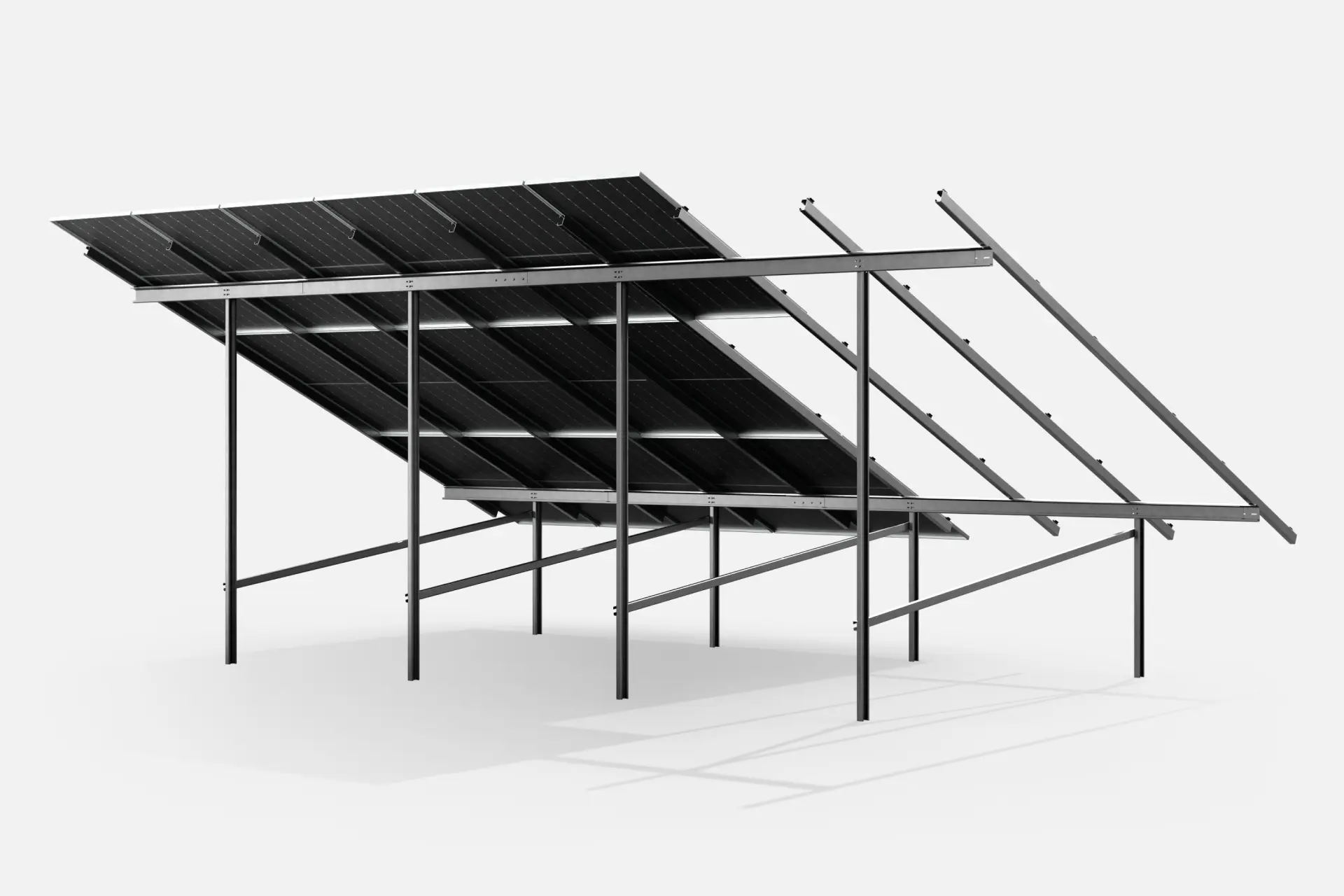

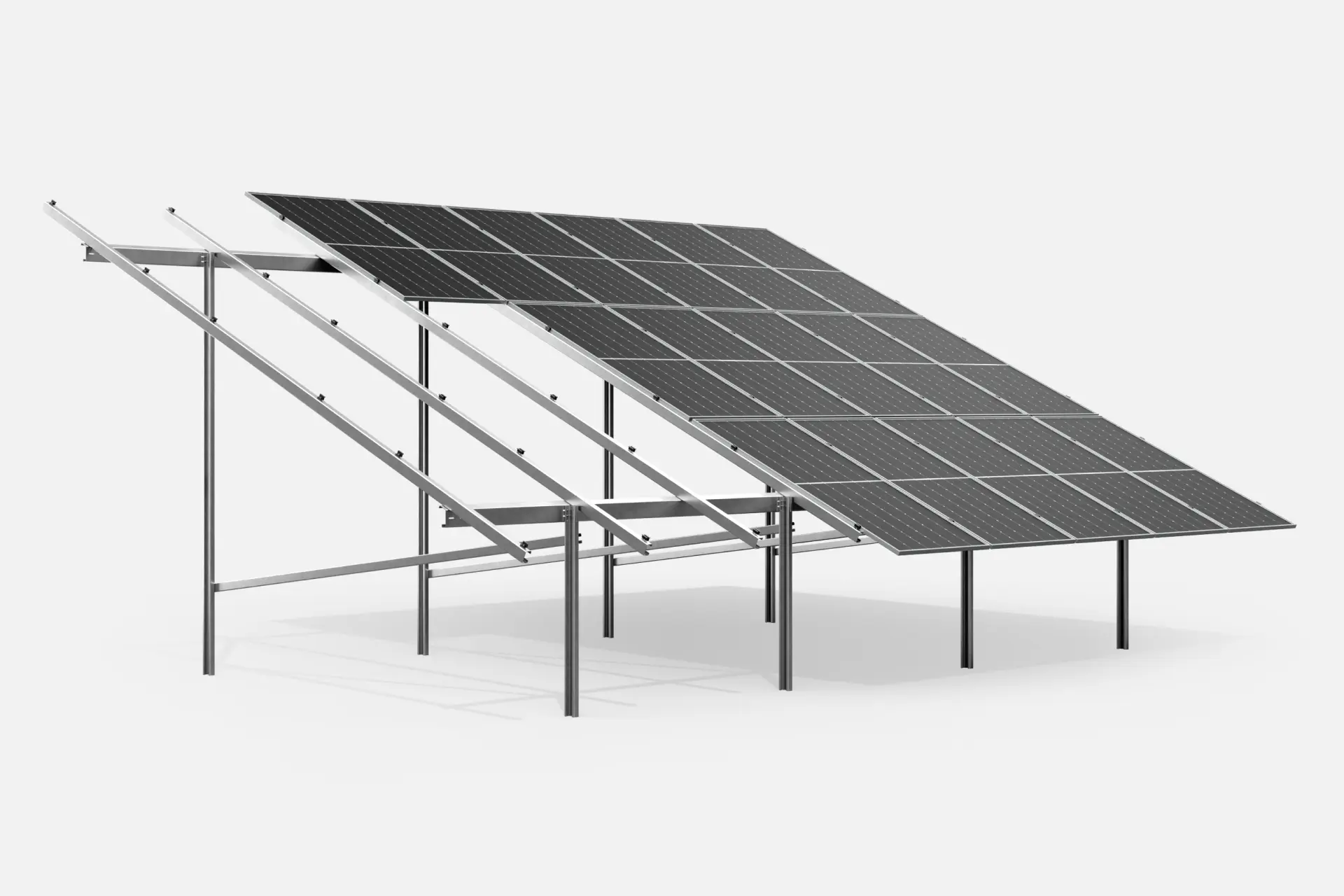

V3xN Bifacial freestanding structure
V3xN Bifacial freestanding structure

vertical arrangement, three-row, bifacial, bipodal

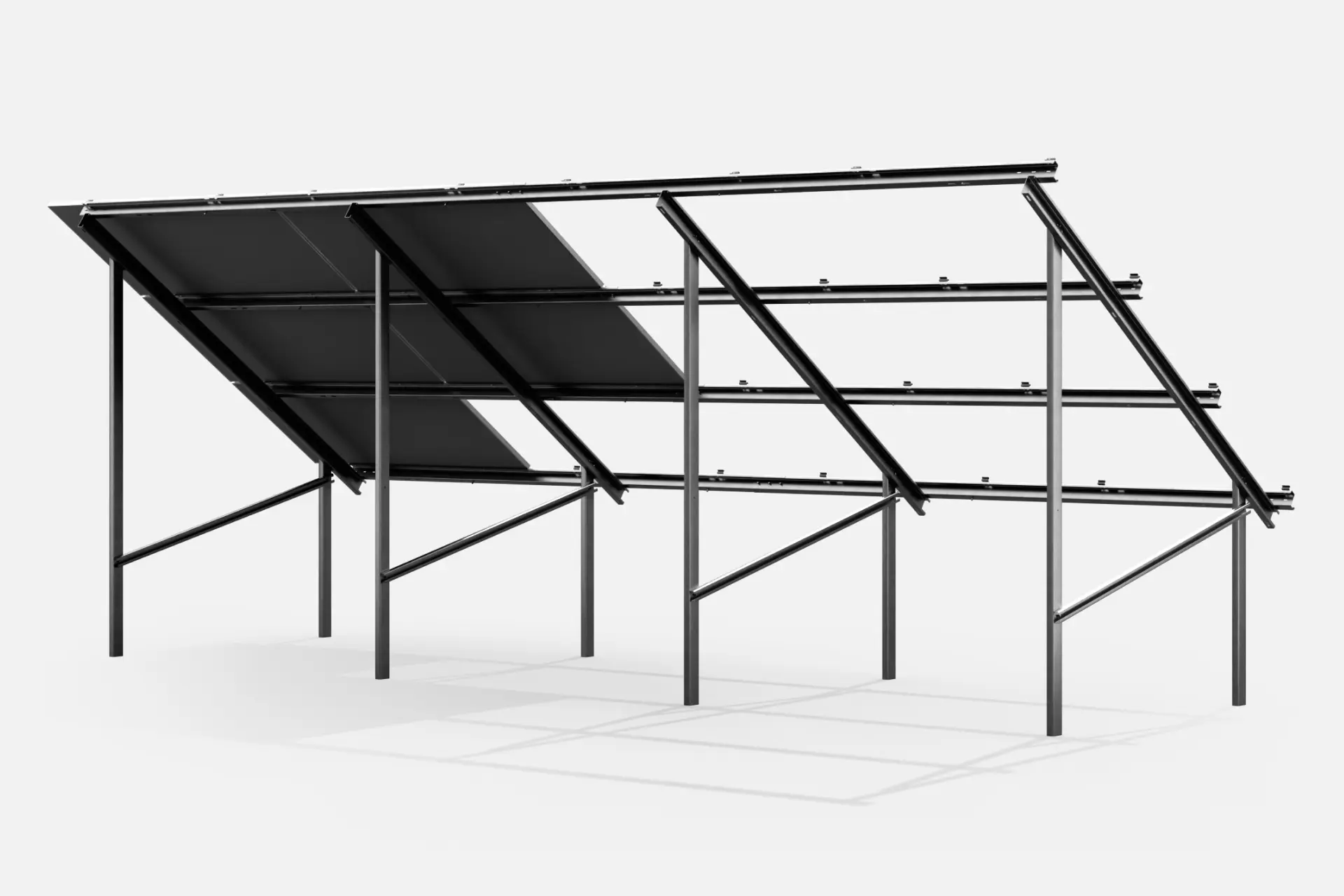

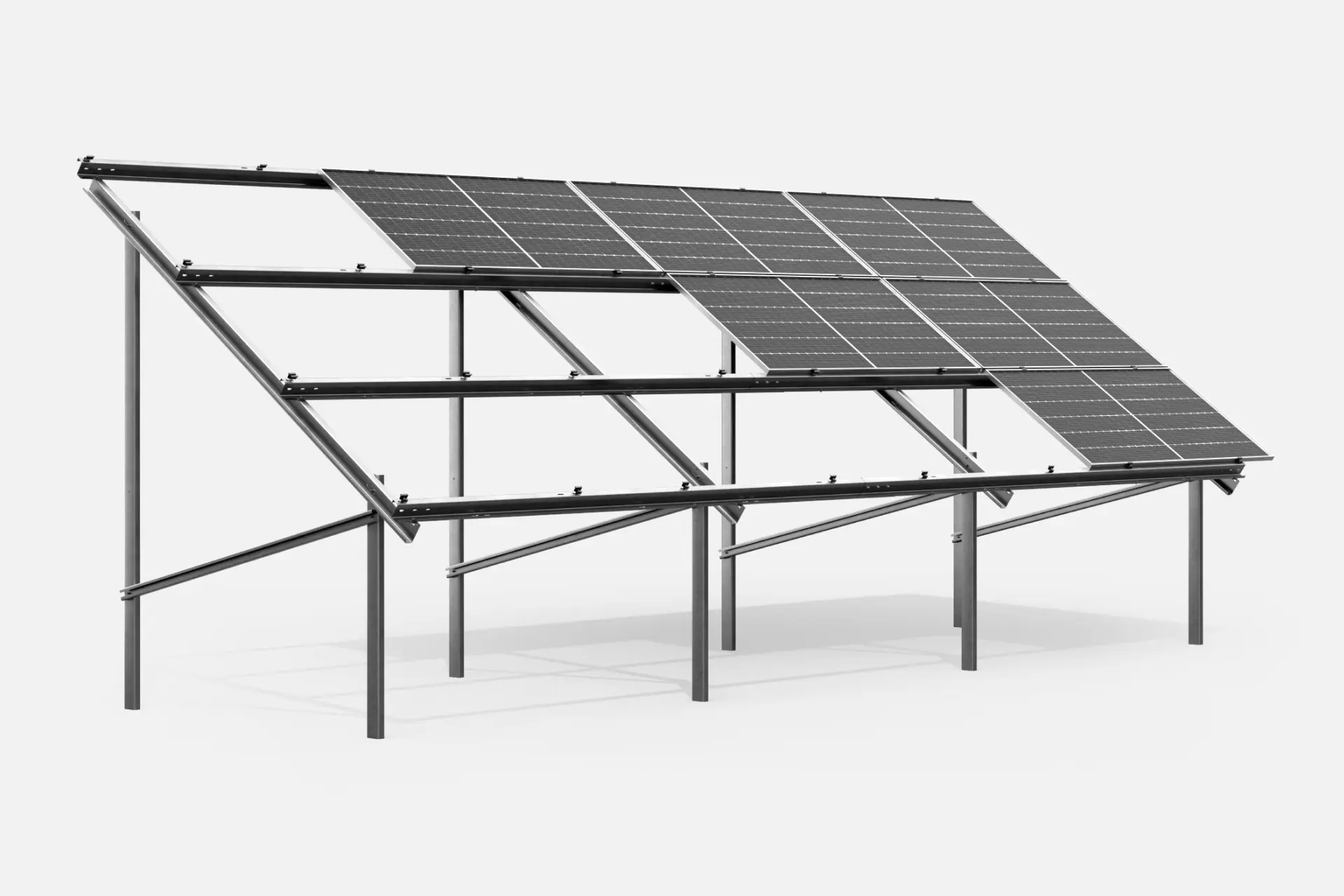

H3xN Standard freestanding structure
H3xN Standard freestanding structure

horizontal arrangement, three-row, monofacial, two-supported

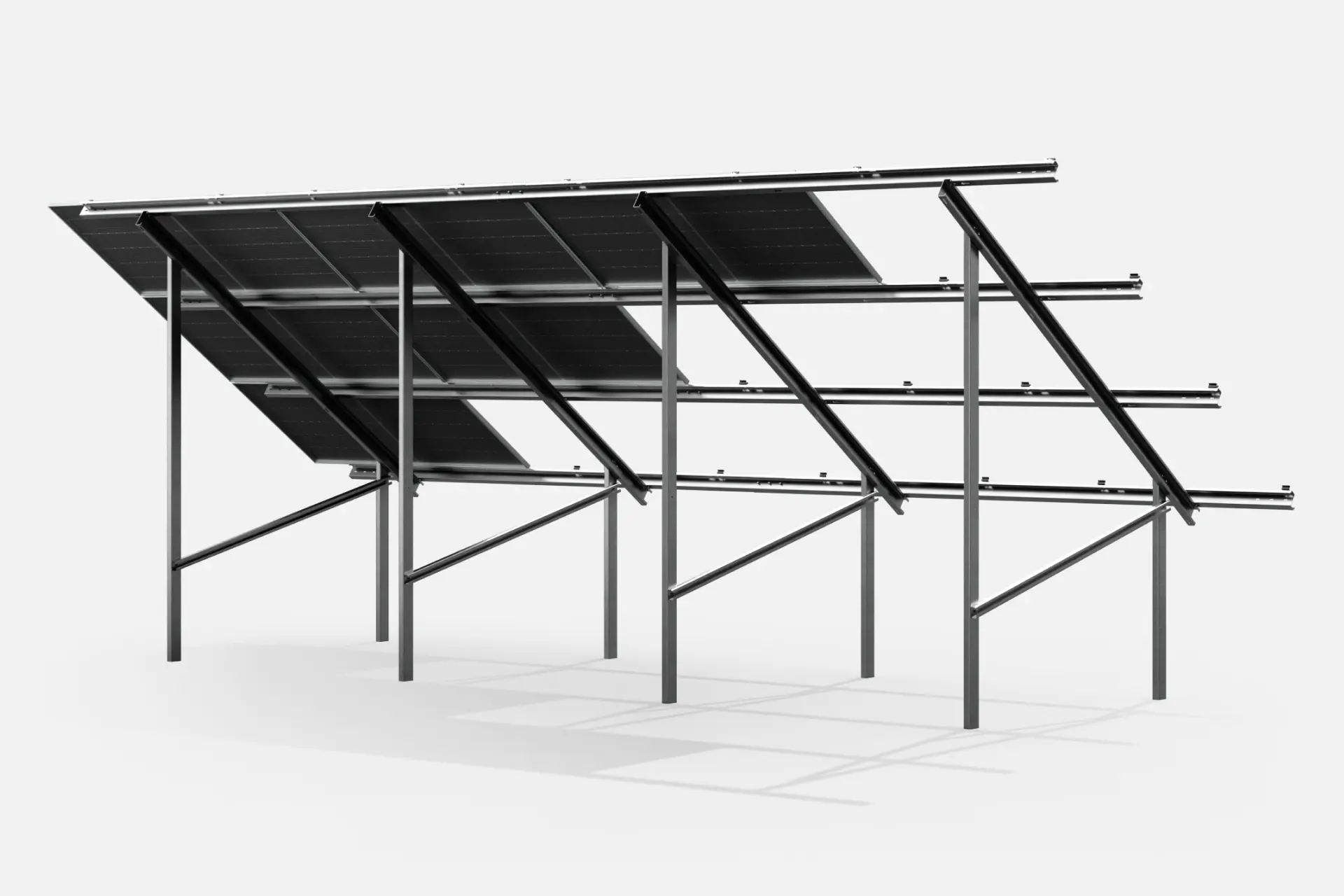

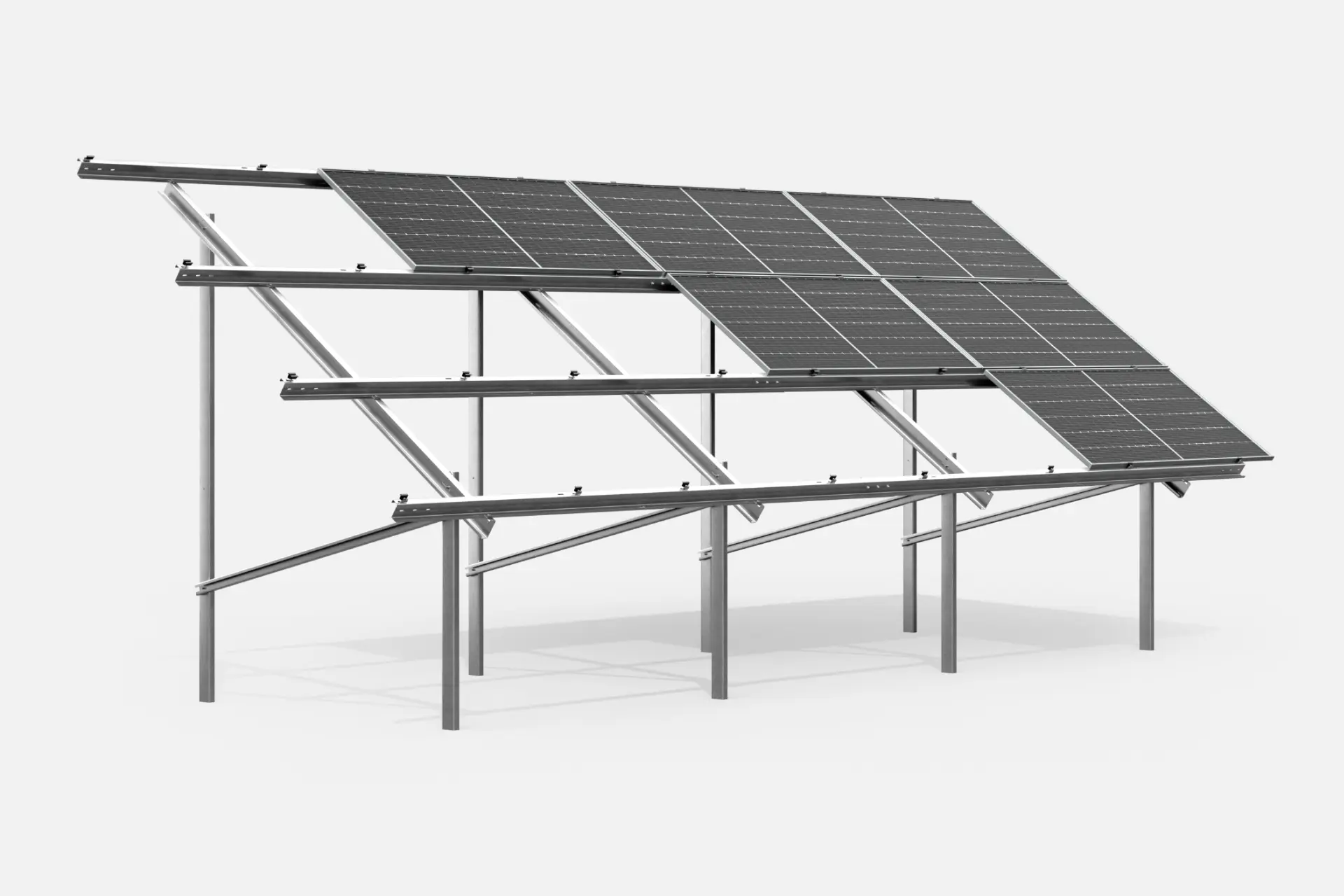

H3xN Bifacial freestanding structure
H3xN Bifacial freestanding structure

horizontal layout, three-row, bifacial, bipodal

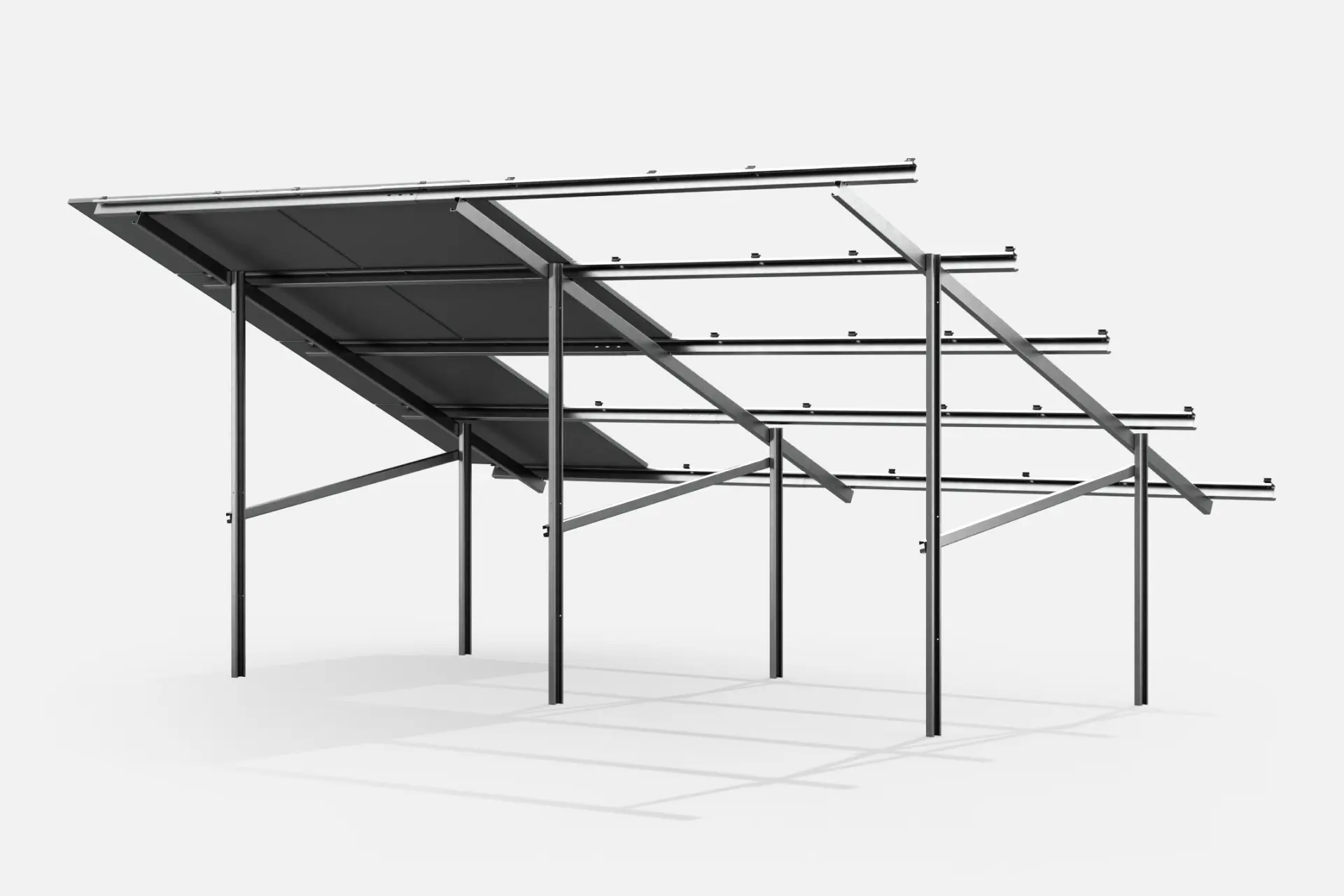

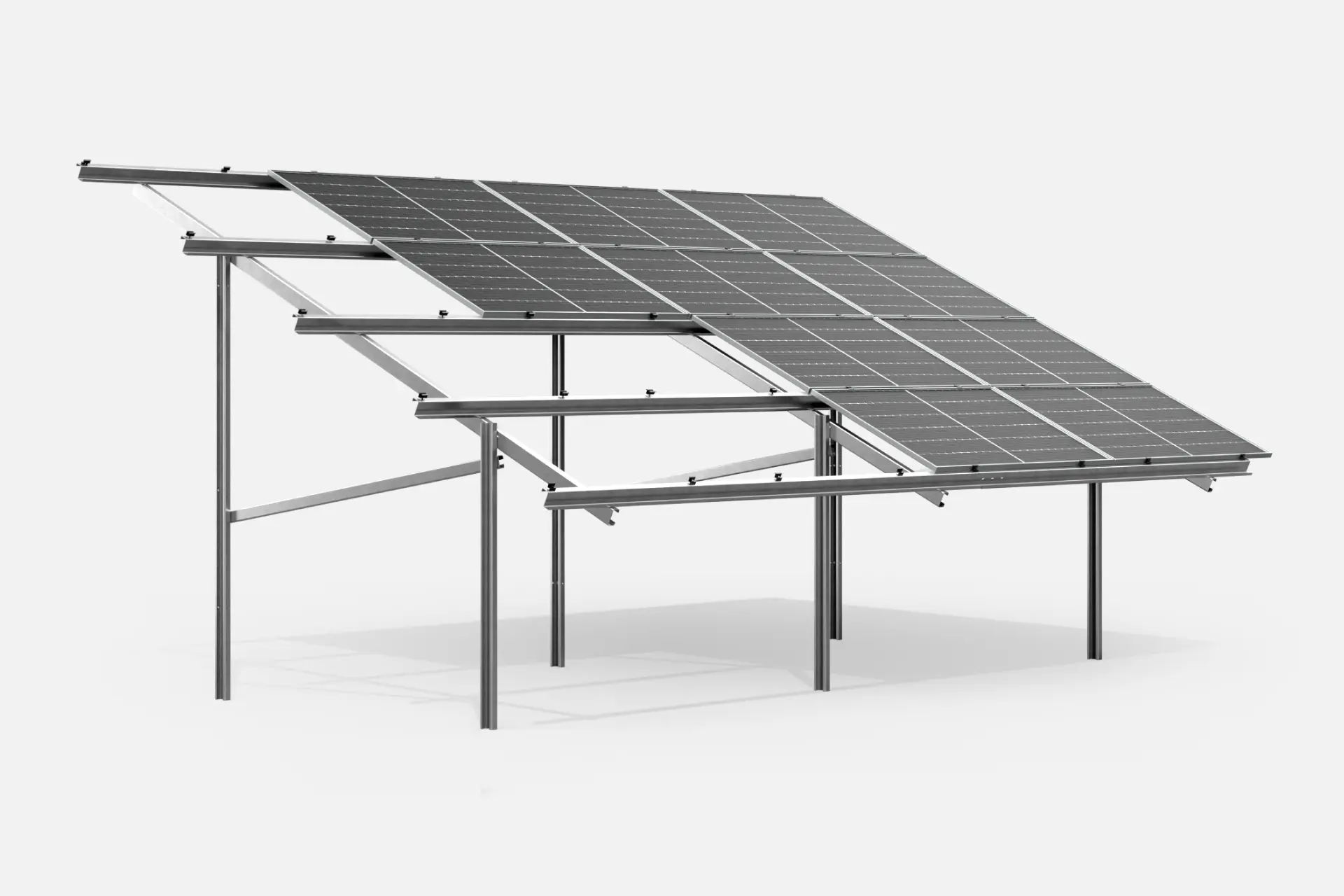

H4xN Standard freestanding structure
H4xN Standard freestanding structure

horizontal layout, four-row, monofacial, two-supported

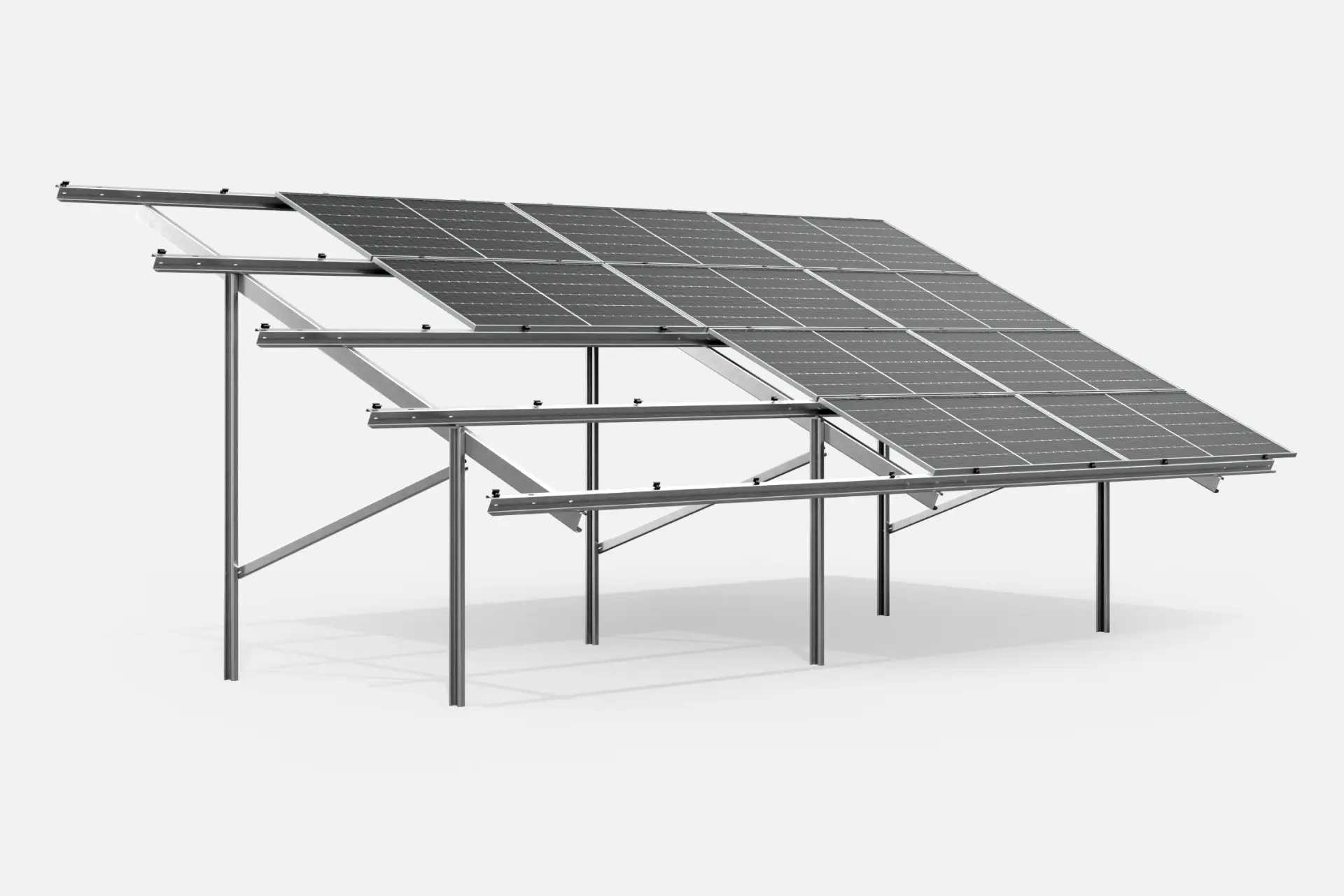

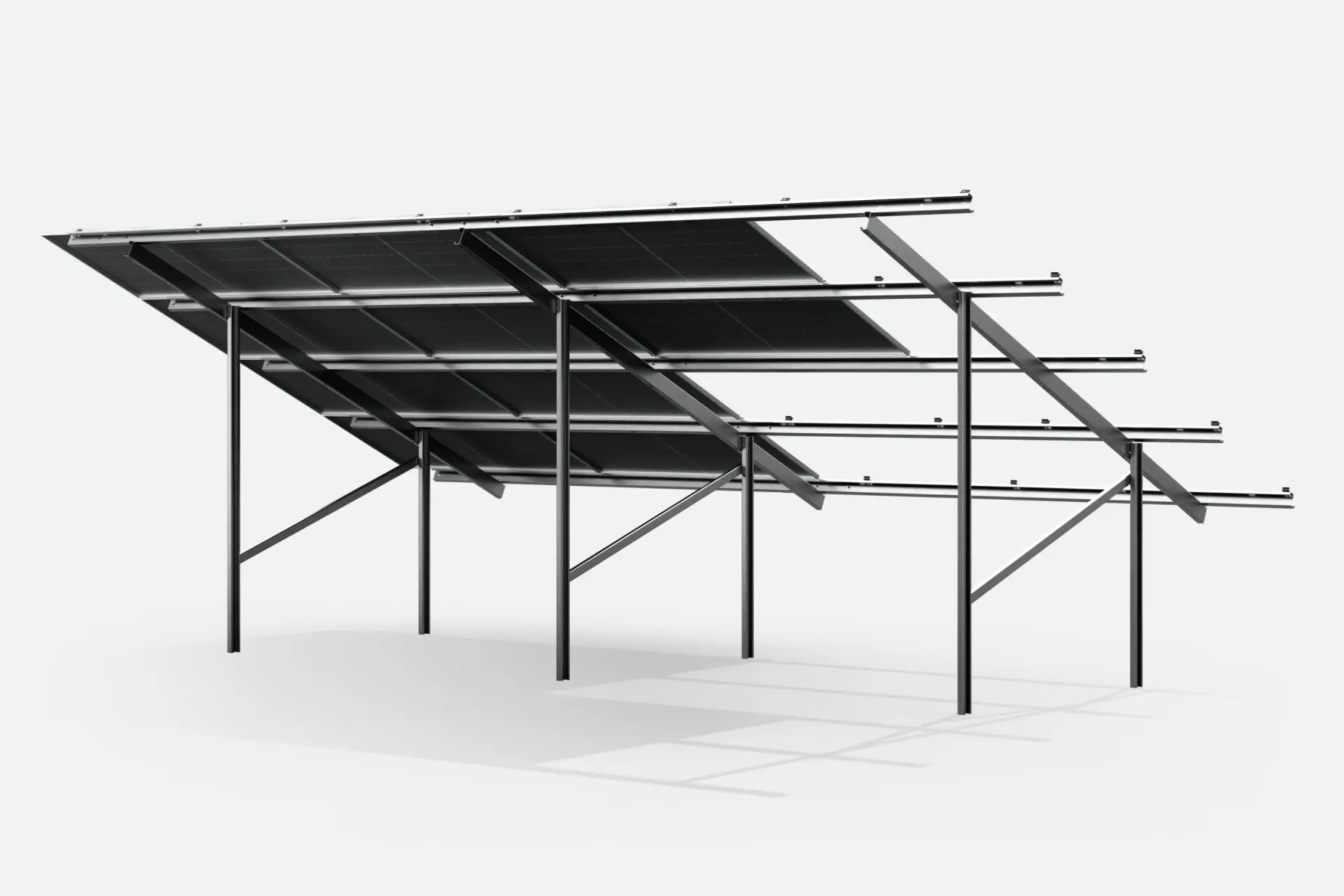

H4xN Bifacial freestanding structure
H4xN Bifacial freestanding structure

horizontal layout, four-row, bifacial, bipodal
